GPM675A0

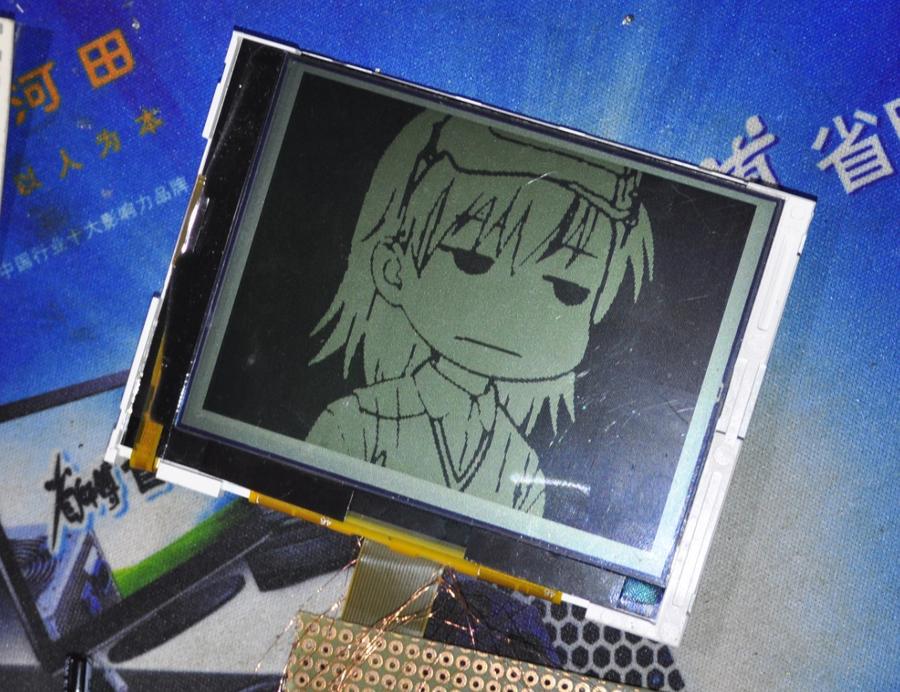

Just a nice-looking 320×240 controller-less LCD. Got it at a very low price ($0.7 each). I am always thinking about making something around it, but it just doesn't happen.

Specification

  • Model: GPM675A0
  • Type: Monochrome Graphical Dot-Matrix
  • Mode: FSTN Positive
  • Grayscale: –
  • Controller: –
  • Size: 90.0×67.7(mm)

Pinout

  1. NC
  2. V0
  3. V1
  4. V2
  5. V3
  6. V4
  7. GND
  8. VCC
  9. D0
  10. D1
  11. D2
  12. D3
  13. D4
  14. D5
  15. D6
  16. D7
  17. XCK
  18. FLM
  19. DOFF
  20. LP
  21. M
  22. LED+
  23. LED-
